What is the HES 9600 Electric Strike?
The HES 9600 is a windstorm-certified, surface-mounted electric strike for rim exit devices manufactured by Hanchett Entry Systems (HES), an ASSA ABLOY company. The strike accommodates 3/4-inch Pullman latchbolts from Von Duprin 99, Sargent 8800, Precision Apex 2100, and other rim panic hardware, and mounts directly to hollow metal or aluminum storefront frames without frame cutting.
The 9600 Series provides 2,000 lbs of static holding force and 120 ft-lbs of dynamic impact resistance, exceeding ANSI Grade 1 specifications. The strike is field-configurable for fail-secure or fail-safe operation and supports both 12V and 24V DC power inputs.
The HES 9600 is the only surface-mounted electric strike certified to ANSI/SDI A250.13 windstorm standards, making it the required choice for hurricane and high-wind zone applications in Florida and coastal regions.
6 Primary Features of the HES 9600
No-Cut Installation
Surface-mount design eliminates frame cutting. The 3/4-inch thick stainless steel housing mounts directly to wood or metal frames for fast retrofits and new installations.
Windstorm Certified
ANSI/SDI A250.13 certified and Florida Building Code approved (FL# 14307). Tested to exceed ASTM E330 structural requirements for hurricane-rated openings.
Grade 1 Security
2,000 lbs static strength and 120 ft-lbs dynamic resistance. UL 1034 burglary-resistant listed and suitable for high-security indoor and outdoor applications.
Field Configurable
Selectable fail-secure or fail-safe operation. Dual voltage support (12V/24V DC) with simple internal jumper configuration—no special tools required.
Optional Monitoring
Available with Latchbolt Monitor (LBM) or Latchbolt Strike Monitor (LBSM) for real-time door status feedback to access control systems.
5-Year Warranty
SecuriCare 5-year no-fault warranty included. Extendable to 10 years with the addition of an HES SMART Pac III power controller.
HES 9600 Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 9600 Series |
| Manufacturer | HES (Hanchett Entry Systems) / ASSA ABLOY |
| Type | Surface-mounted electric strike |
| Compatible Devices | Rim exit devices with up to 3/4" Pullman latchbolt |
| Frame Compatibility | Wood and metal frames (surface mount—no cutting required) |
| Voltage | 12 VDC or 24 VDC (field selectable) |
| Current Draw | 500 mA @ 12V / 250 mA @ 24V (continuous duty) |
| Static Holding Force | 2,000 lbs |
| Dynamic Strength | 120 ft-lbs |
| Endurance | 1,000,000+ cycles |
| Dimensions (H × W × D) | 9" × 1-3/4" × 3/4" (228.6 × 44.5 × 19 mm) |
| Operating Mode | Fail-secure or fail-safe (field selectable) |
| Monitoring Options | LBM (Latchbolt Monitor), LBSM (Latchbolt Strike Monitor) |
| Warranty | 5-year SecuriCare (extendable to 10 years with SMART Pac III) |
View complete technical specifications →
8 Available Finish Options
The HES 9600 is available in 8 standard architectural finishes to match existing door hardware:

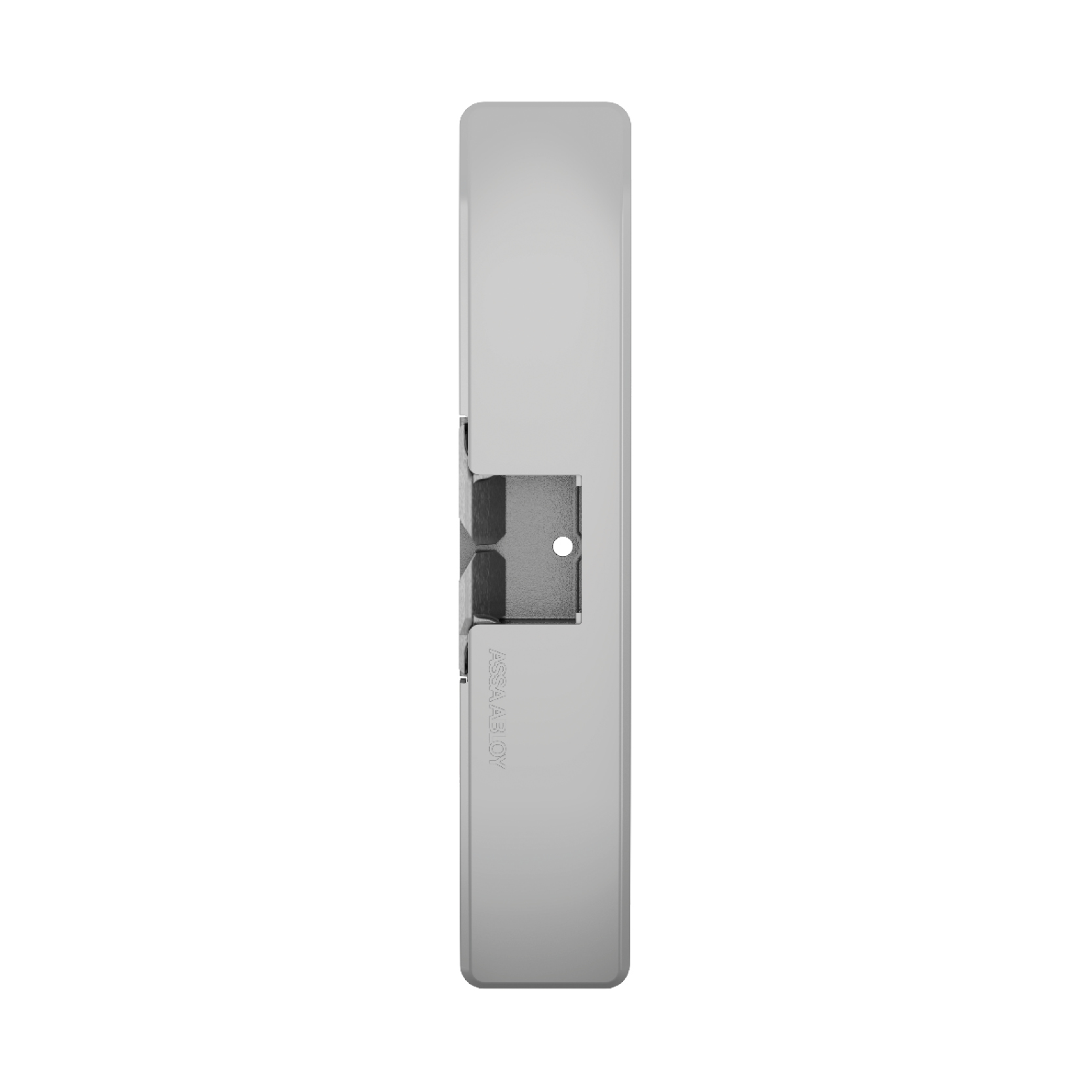

630
Satin Stainless

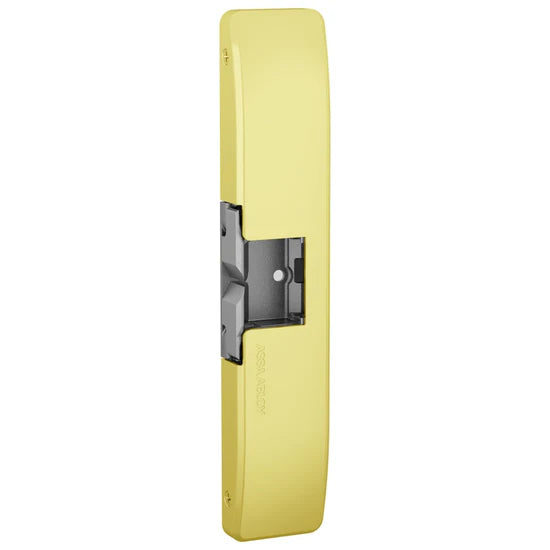

605
Bright Brass

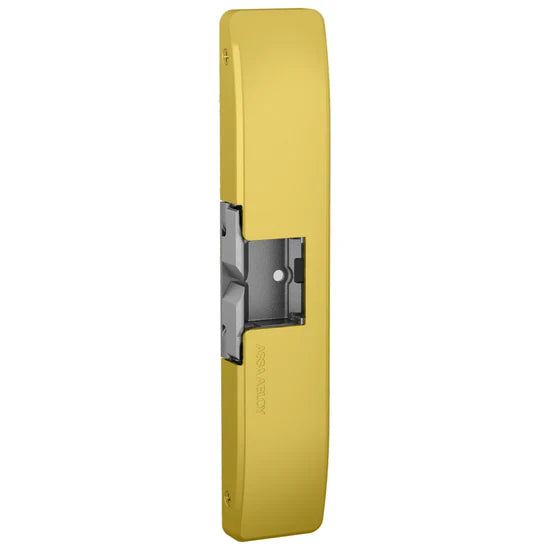

606
Satin Brass
612
Satin Bronze

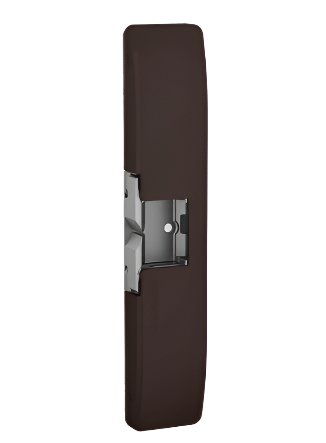

613
Oil Rubbed Bronze

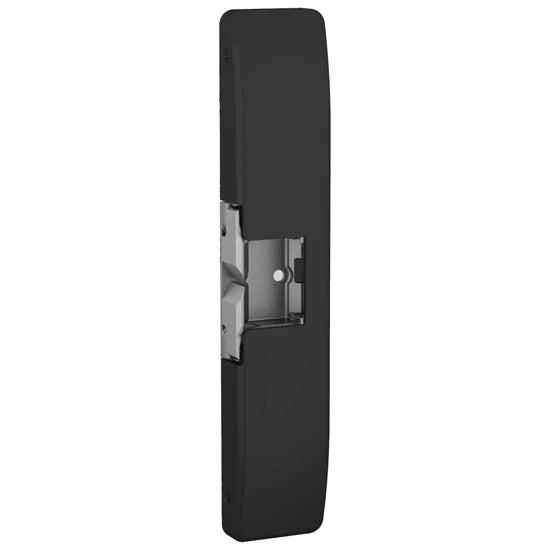

BSP
Black Suede
| Finish Code | Finish Name | Description |
|---|---|---|
| 630 | Satin Stainless Steel | Brushed stainless—most popular finish |
| 629 | Bright Stainless Steel | Polished mirror stainless |
| 605 | Bright Brass | Polished brass finish |
| 606 | Satin Brass | Matte gold tone |
| 612 | Satin Bronze | Medium bronze finish |
| 613 | Oil Rubbed Bronze | Dark bronze-toned finish |
| 613E | Dark Oxidized Satin Bronze | Dark oxidized bronze powder coat |
| BSP | Black Suede Powder | Textured matte black |
HES 9600 Certifications
The HES 9600 holds 8 major certifications and compliance standards:
- ANSI/BHMA A156.31 Grade 1 — Highest performance grade for electric strikes
- ANSI/SDI A250.13 — Windstorm resistance certification
- ASTM E330 — Structural wind load testing
- Florida Building Code (FL# 14307) — Hurricane-rated opening approval
- UL 1034 — Burglary-resistant listing for indoor/outdoor use
- UL 294 — Access control system unit standard
- UL 305 — Panic hardware compatibility
- RoHS Compliant — Lead-free and environmentally safe materials
Learn more about HES 9600 certifications →
Common Applications
The HES 9600 electric strike is installed in 4 primary application categories:
1. Commercial Buildings
Office buildings, retail stores, and warehouses use the HES 9600 on exterior and interior doors with rim panic hardware. The surface-mount design simplifies retrofitting existing frames without costly modifications.
2. Educational Facilities
Schools and universities install the HES 9600 for classroom lockdown systems and controlled-access areas. The LBM/LBSM monitoring options integrate with campus-wide access control platforms from Lenel, Software House, Genetec, and AMAG for lockdown verification.
3. Hurricane and High-Wind Zones
The HES 9600 is the required electric strike for windstorm-rated door assemblies in Florida and coastal regions. Florida Building Code approval (FL# 14307) certifies compliance with TAS 201, 202, and 203 standards.
4. Healthcare and Institutional
Hospitals, detention facilities, and government buildings specify the HES 9600 for its UL 1034 burglary-resistant rating and 1,000,000+ cycle durability in high-traffic environments including emergency departments, pharmacy vaults, and behavioral health units.
Explore all HES 9600 applications →
HES 9600 vs. Related Models
The HES 9000 Series includes 5 surface-mounted electric strikes for rim exit devices. The 9600 is the windstorm-rated, non-fire-rated option:
| Feature | HES 9400 | HES 9500 | HES 9600 | HES 9700 |
|---|---|---|---|---|
| Latchbolt Size | 1/2" max | 3/4" max | 3/4" max | SquareBolt |
| Windstorm Rated | ✗ | ✗ | ✓ | ✓ |
| Fire Rated | ✗ | ✓ 3-hour | ✗ | ✓ 3-hour |
| Static Strength | 1,500 lbs | 1,500 lbs | 2,000 lbs | 2,000 lbs |
| Dynamic Strength | 70 ft-lbs | 70 ft-lbs | 120 ft-lbs | 120 ft-lbs |
| Florida Building Code | ✗ | ✗ | ✓ | ✓ |
| Best For | Slim profile | Fire doors | Windstorm zones | SquareBolt devices |
See detailed HES 9600 vs 9500 comparison →
Installation Overview
The HES 9600 installs in 5 steps without specialized tools or frame cutting. Installation varies by frame type—see the hollow metal frame installation guide or aluminum storefront frame guide for detailed procedures:
- Position the template — Use the 9000-MTK metal template kit to mark mounting hole locations on the frame
- Drill mounting holes — Create 1/4"-20 threaded holes (or use Securitron BN-250 blind nuts for thin-gauge frames)
- Configure voltage — Connect the appropriate pigtail (12V or 24V DC)
- Set operation mode — Adjust internal selector for fail-secure or fail-safe (ships fail-secure)
- Mount and adjust — Secure base to frame, align with latchbolt, install decorative cover
Converting the HES 9600 to fail-safe operation removes the windstorm rating. Use fail-secure mode for hurricane-zone compliance.
View complete installation guide with wiring diagrams →
Cross-Reference: Equivalent Electric Strikes
The HES 9600 competes with several other Grade 1 surface-mounted electric strikes for rim exit devices. Use this cross-reference to identify equivalent models from other manufacturers:
| Description | HES | RCI (Dorma Kaba) | Adams Rite | Trine | Locknetics | Camden |
|---|---|---|---|---|---|---|
| 3/4" Rim Strike (Windstorm) | 9600 | 0162 | 74R1 | 4800F | FS300 | CX-EPD1289L |
| 3/4" Rim Strike (Fire Rated) | 9500 | 0162 | 74R1 | 4850 | RS200 | — |
| 1/2" Rim Strike (Slim) | 9400 | 0161 | 74R2 | 4801 | — | — |
| SquareBolt Rim Strike | 9700 | — | 7800 | — | — | — |
View detailed cross-reference comparison →
