HES 9600 Dimensions
The HES 9600 measures 9" × 1-3/4" × 3/4" (228.6 × 44.5 × 19 mm) and surface-mounts to hollow metal, aluminum storefront, and wood frames without frame cutting. The compact profile accommodates rim exit devices with up to 3/4-inch Pullman latchbolts from Von Duprin, Sargent, Precision, and other manufacturers.

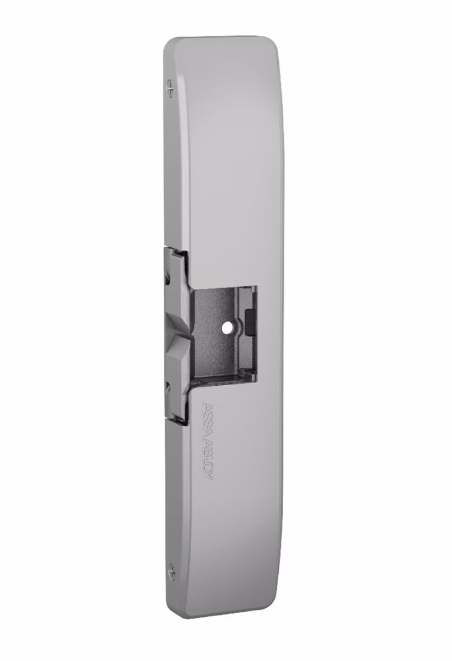

HES 9600 dimensional diagram (9" × 1-3/4" × 3/4")
What are the overall dimensions of the HES 9600?
The HES 9600 measures 9 inches (228.6 mm) tall × 1-3/4 inches (44.5 mm) wide × 3/4 inch (19 mm) deep. This compact form factor allows surface mounting on wood and metal frames without cutting or routing. The strike body projects 3/4 inch from the frame face.
| Dimension | Imperial | Metric |
|---|---|---|
| Overall Height | 9" | 228.6 mm |
| Overall Width | 1-3/4" | 44.5 mm |
| Overall Depth (Projection) | 3/4" | 19 mm |
| Mounting Plate Height | 8-1/2" | 215.9 mm |
| Mounting Plate Width | 1-1/2" | 38.1 mm |
What latchbolt size does the HES 9600 accept?
The HES 9600 accommodates Pullman-style latchbolts up to 3/4 inch (19 mm) in diameter. This sizing is compatible with standard rim exit devices from Von Duprin, Sargent, Corbin Russwin, Precision, and other major manufacturers. Exit devices with 1/2-inch latchbolts require the HES 9400 slim-profile model instead.
| Latchbolt Specification | Value |
|---|---|
| Maximum Latchbolt Diameter | 3/4" (19 mm) |
| Latchbolt Type | Pullman (round, beveled) |
| Latchbolt Travel | Up to 1/2" (12.7 mm) |
| Strike Opening Width | 1-1/16" (27 mm) |
| Strike Opening Height | 1-5/16" (33 mm) |
The HES 9600 is designed for Pullman-style (round) latchbolts only. For SquareBolt exit devices (commonly used in mortise applications), specify the HES 9700 instead.
What are the mounting hole locations?
The HES 9600 uses four 1/4"-20 mounting holes arranged in a vertical pattern with 7-inch spacing. The mounting holes are positioned 1/2 inch from the top and bottom edges of the mounting plate. HES provides the 9000-MTK metal template kit for accurate hole marking.
| Mounting Specification | Value |
|---|---|
| Number of Mounting Holes | 4 |
| Mounting Hole Thread | 1/4"-20 |
| Top Holes from Top Edge | 1/2" (12.7 mm) |
| Bottom Holes from Bottom Edge | 1/2" (12.7 mm) |
| Vertical Hole Spacing | 7" (177.8 mm) |
| Horizontal Hole Spacing | 1" (25.4 mm) |
| Template Kit | 9000-MTK (sold separately) |
What frame clearance is required?
The HES 9600 requires minimum 1-inch clearance between the frame face and the exit device vertical rod. The 3/4-inch projection must not interfere with the panic bar's latchbolt travel or the door's swing clearance. Verify the strike opening aligns with the exit device latchbolt centerline.
| Clearance Requirement | Minimum |
|---|---|
| Frame Face to Vertical Rod | 1" (25.4 mm) |
| Strike Projection | 3/4" (19 mm) |
| Door-to-Frame Gap | 1/8" to 3/16" (3.2–4.8 mm) |
| Latchbolt Engagement Depth | Minimum 1/2" (12.7 mm) |
How does the HES 9600 compare to other models?
The HES 9600 shares identical dimensions with the HES 9500 (fire-rated) but is larger than the slim-profile 9400. The 9700 SquareBolt model uses different dimensions to accommodate its wider strike opening.
| Model | Height | Width | Depth | Latchbolt |
|---|---|---|---|---|
| HES 9400 | 8-1/4" | 1-1/2" | 1/2" | 1/2" max |
| HES 9500 | 9" | 1-3/4" | 3/4" | 3/4" max |
| HES 9600 | 9" | 1-3/4" | 3/4" | 3/4" max |
| HES 9700 | 9" | 2" | 7/8" | SquareBolt |
Dimensional Drawing Reference
The official HES 9600 dimensional drawings are available in the manufacturer's installation instructions. Key measurements for field verification:
Critical Dimensions for Installation
- Strike height: 9 inches—position centerline at exit device latchbolt height
- Strike width: 1-3/4 inches—verify frame has sufficient flat surface
- Strike projection: 3/4 inch—confirm door swing clearance
- Mounting holes: Four 1/4"-20 holes at 7-inch vertical spacing
- Strike opening: 1-1/16" × 1-5/16"—verify latchbolt will engage properly
Download the official HES 9600 installation instructions with detailed dimensional drawings:
